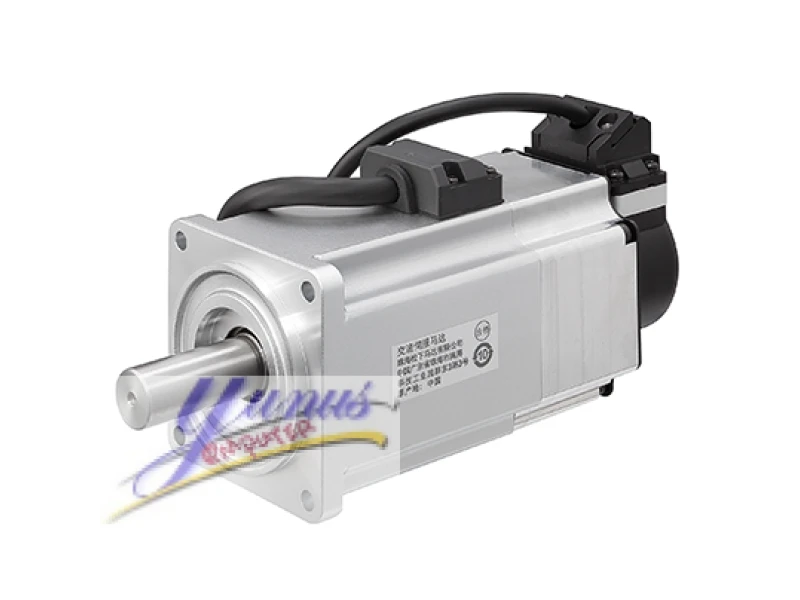

Panasonic MINAS A6 Family MHMF042A1D4M Servo Motor – 200V, 400W
Overview:
Elevate the precision and efficiency of your motion control systems with the Panasonic MINAS A6 Family MHMF042A1D4M Servo Motor. Engineered for high-performance applications, this 400W servo motor delivers exceptional accuracy, durability, and reliability. It is ideal for a wide range of industrial automation tasks, including robotics, CNC machinery, and high-precision manufacturing processes.
Key Features:
High Power Output:
- The MHMF042A1D4M offers a robust 400W power output, ensuring that it meets the demands of demanding automation tasks with ease.
Optimal Voltage Range:
- Operates efficiently at a voltage of 200V, providing stable performance and consistent results across various applications.
Advanced Control Technology:
- Part of the renowned MINAS A6 series, this servo motor integrates cutting-edge control algorithms and feedback mechanisms to achieve precise motion control and reduced vibration.
Enhanced Durability:
- Built with high-quality materials and components, the MHMF042A1D4M is designed for long-term reliability in challenging environments. Its robust construction ensures extended service life and minimal maintenance.
Compact and Efficient Design:
- The motor’s compact form factor allows for easy integration into space-constrained setups while maintaining high efficiency and performance.
Superior Speed and Torque Performance:
- Delivers exceptional torque characteristics and acceleration capabilities, making it suitable for high-speed and high-precision applications.
Versatile Compatibility:
- Compatible with a wide range of Panasonic controllers and accessories, allowing for seamless integration and enhanced system flexibility.
Applications:
- Robotics: Ideal for precise control in robotic arms and automation systems, enhancing performance and reliability in complex tasks.
- CNC Machinery: Perfect for CNC machines requiring accurate and repeatable movements for cutting, milling, and drilling operations.
- Manufacturing: Suitable for various manufacturing processes where high torque and speed are essential for optimal production efficiency.
Technical Specifications:
- Model: MHMF042A1D4M
- Family: MINAS A6
- Voltage: 200V
- Power: 400W
- Type: Servo Motor
Why Choose Panasonic MINAS A6 Family MHMF042A1D4M?
The Panasonic MINAS A6 Family MHMF042A1D4M Servo Motor stands out for its exceptional performance and reliability, making it a preferred choice for high-precision applications in industrial settings. Its advanced control features and durable design ensure that you achieve superior motion control with minimal downtime and maintenance.
Contact Us:
For more information or to request a quote, please contact our sales team. Experience the precision and performance of Panasonic’s MINAS A6 Family and enhance your automation capabilities today!
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMF042A1D4M |
| Details | High inertia, Lead wire type |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Special Order Product | Special Order Product |
| Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications | 200 V |
| Rated output | 400 W |
| Rated current (A (rms)) | 2.1 |
| Holding brake | with |
| Mass (kg) | 1.6 |
| Oil seal | with protective lip |
| Shaft | Round |
| Rated torque (N ⋅ m) | 1.27 |
| Continuous stall torque (N ⋅ m) | 1.40 |
| Momentary Max. peak torque (N ⋅ m) | 4.46 |
| Max. current (A (o-p)) | 10.4 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.58 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.6 or more |
| Engaging time (ms) | 50 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
