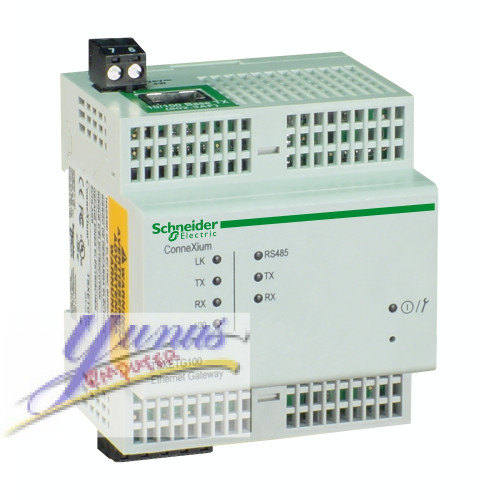

Schneider TSXETG100 Modbus Ethernet Gateway
Unlock seamless connectivity and optimized performance with the Schneider TSXETG100 Modbus Ethernet Gateway. Engineered for industrial excellence, this cutting-edge gateway offers robust solutions for integrating Modbus-based devices into Ethernet networks, enhancing communication capabilities and operational efficiency.
Key Features:
Versatile Protocol Support: The TSXETG100 serves as a bridge between Modbus RTU/ASCII and Ethernet networks, enabling smooth data exchange and interoperability between diverse systems.
High-Speed Communication: With its advanced processing capabilities, this gateway ensures rapid data transmission, minimizing latency and maximizing system responsiveness.
User-Friendly Configuration: The intuitive web-based interface simplifies setup and management, allowing for quick adjustments and real-time monitoring of network performance.
Enhanced Reliability: Designed for industrial environments, the TSXETG100 features robust construction to withstand harsh conditions, ensuring consistent operation and minimal downtime.
Scalable Integration: Suitable for a wide range of applications, from small-scale operations to large industrial setups, the gateway supports scalable network architectures, facilitating future expansion and system upgrades.
Advanced Security Features: Equipped with comprehensive security protocols to safeguard data integrity and protect against unauthorized access, ensuring a secure communication channel.
Comprehensive Diagnostics: The built-in diagnostic tools provide valuable insights into network performance and potential issues, enabling proactive maintenance and reducing troubleshooting time.
Technical Specifications:
- Communication Protocols: Modbus RTU, Modbus ASCII, Ethernet/IP
- Data Transfer Rate: Up to 100 Mbps
- Operating Temperature Range: -10°C to +60°C
- Power Supply: 24V DC
- Mounting Options: DIN rail or panel mount
Applications:
- Industrial Automation: Integrate legacy Modbus devices with modern Ethernet networks to streamline operations and improve system interoperability.
- Building Management Systems: Facilitate communication between building management systems and various Modbus-based sensors and controllers.
- Process Control: Enhance control and monitoring of industrial processes through reliable and efficient data exchange.
Optimize your industrial communication infrastructure with the Schneider TSXETG100 Modbus Ethernet Gateway, a pivotal component designed to enhance connectivity, ensure reliable performance, and support the evolving demands of modern industrial environments.
| range of product |
ConneXium
|
|
|---|---|---|
| product or component type |
Ethernet Modbus gateway/router
|
|
| product destination |
All products compatible with Modbus standard
|
|
| concept |
Transparent Ready
|
|
| web server |
Class B10
|
|
| [Us] rated supply voltage |
24 V DC
|
| web services |
Access to connected products list, reading of Modbus devices
registers
Predefined web pages Via predefined web pages : diagnostic on Ethernet and Modbus links |
|
|---|---|---|
| communication service |
BOOTP protocol, FDR client
Miniature firewall on-board (IP address filtering) and password protection Read/write Modbus registers of connected devices SNMP agent, device administration with a SNMP manager |
|
| supply |
Power supply device PoE IEEE 802.3af
|
|
| integrated connection type |
Ethernet TCP/IP RJ45 10/100 Mbps 1 twisted pair
Serial link 5-way removable terminal block Modbus RTU and ASCII RS485 57.6 kbps Serial link micro switches Modbus RTU and ASCII RS485 57.6 kbps Serial link RJ45 RS232 38.4 kbps |
|
| number of connected devices |
32 Modbus serial link
|
|
| port Ethernet |
10BASE-T/100BASE-TX
|
|
| mounting support |
Symmetrical DIN rail
|
|
| marking |
CE
|
|
| local signalling |
3 LEDs serial link communication (RS485, RX, TX)
4 LEDs Ethernet communication (LK, RX, TX, 100) |
|
| width |
72 mm
|
|
| height |
81 mm
|
|
| depth |
76 mm
|
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| relative humidity |
5...95 % 40 °C without condensation
|
|
| IP degree of protection |
IP30
|
|
| standards |
EN 55022 FCC class A
EN 61000-4-2/3/4/5/6/8 EN 61000-6-2 UL 508 CSA C22.2 No 14-M91 |
|
| product certifications |
CUL
UL |
