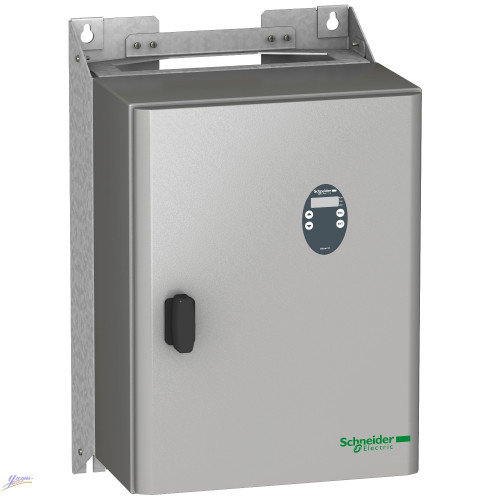

Schneider ATV31C018M2 Enclosed variable speed drive ATV31 - 0.18kW - 240V - IP55

Main
range of product	Altivar 31
product or component type	Variable speed drive
product destination	Asynchronous motors
product specific application	Simple machine
assembly style	Enclosed
component name	ATV31
EMC filter	Integrated
power supply voltage	200...240 V - 15...10 %
power supply frequency	50...60 Hz - 5...5 %
network number of phases	Single phase
motor power kW	0.18 kW
motor power hp	0.25 hp
line current	3 A 200 V 1 kA 2.5 A 240 V 1 kA
apparent power	0.6 kVA
maximum prospective line Isc	1 kA
nominal output current	1.5 A 4 kHz
maximum transient current	2.3 A 60 s
power dissipation in W	24 W at nominal load
speed range	1...50
transient overtorque	Of nominal motor torque
asynchronous motor control profile	Factory set : constant torque Sensorless flux vector control with PWM type motor control signal
analogue input number	3
IP degree of protection	IP55
