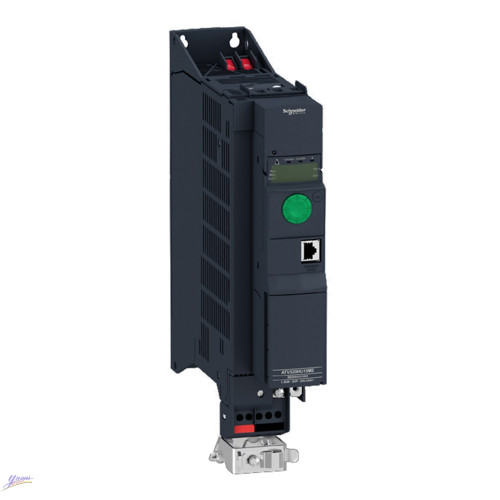

Schneider ATV320U04N4B Variable speed drive ATV320 - 0.37kW - 380...500V - 3 phase - book
| range of product |
Altivar Machine ATV320
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Complex machines
|
|
| device short name |
ATV320
|
|
| format of the control block |
Book
|
|
| product destination |
Asynchronous motors
Synchronous motors |
|
| EMC filter |
Class C2 EMC filter integrated
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 61800-5-1
|
|
| type of cooling |
Fan
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
380...500 V (- 15...10 %)
|
|
| supply frequency |
50...60 Hz (- 5...5 %)
|
|
| motor power kW |
0.37 kW for heavy duty
|
|
| motor power hp |
0.5 hp for heavy duty
|
|
| line current |
1.8 A at 380 V for heavy duty
1.4 A at 500 V for heavy duty |
|
| prospective line Isc |
5 kA
|
|
| apparent power |
1.2 kVA at 500 V for heavy duty
|
|
| continuous output current |
1.5 A at 4 kHz for heavy duty
|
|
| maximum transient current |
2.3 A during 60 s for heavy duty
|
|
| asynchronous motor control profile |
Flux vector control without sensor, standard
Flux vector control without sensor - Energy Saving Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 5 points Voltage/frequency ratio, 2 points |
|
| synchronous motor control profile |
Vector control without sensor
|
|
| speed drive output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
4 kHz
|
|
| switching frequency |
4...16 kHz with current derating
2...16 kHz adjustable |
|
| safety function |
STO (safe torque off) SIL 3
SS1 (safe stop 1) SMS (safe maximum speed) SLS (safe limited speed) GDL (guard door locking) |
|
| communication port protocol |
Modbus
CANopen |
|
| optional communication modules |
Communication module: CANopen daisy chain RJ45
Communication module: CANopen SUB-D 9 Communication module: CANopen open style terminal block Communication module: EtherCAT RJ45 Communication module: DeviceNet Communication module: Ethernet/IP Communication module: Profibus DP V1 Communication module: Profinet Communication module: Ethernet Powerlink |
ATV320U06M2C
ATV320U07M2C
ATV320U11M2C
ATV320U15M2C
ATV320U22M2C
ATV320U02M3C
ATV320U04M3C
ATV320U06M3C
ATV320U07M3C
ATV320U11M3C
ATV320U15M3C
ATV320U22M3C
ATV320U30M3C
ATV320U40M3C
ATV320U55M3C
ATV320U75M3C
ATV320D11M3C
ATV320D15M3C
ATV320U04N4C
ATV320U06N4C
ATV320U07N4C
ATV320U11N4C
ATV320U15N4C
ATV320U22N4C
ATV320U30N4C
ATV320U40N4C
ATV320U07S6C
ATV320U15S6C
ATV320U22S6C
ATV320U40S6C
ATV320U55S6C
ATV320U75S6C
ATV320D11S6C
ATV320D15S6C
ATV320U02M2B
ATV320U04M2B
ATV320U06M2B
ATV320U07M2B
ATV320U11M2B
ATV320U15M2B
ATV320U22M2B
