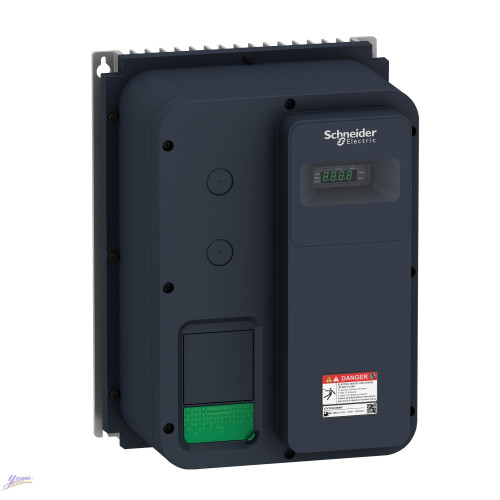

Schneider ATV320U04N4W Variable speed drive ATV320 - 0,37kW - 400V - 3ph - without vario - IP66
| range of product |
Altivar Machine ATV320
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Complex machines
|
|
| device short name |
ATV320
|
|
| format of the control block |
Enclosed
|
|
| product destination |
Synchronous motors
Asynchronous motors |
|
| EMC filter |
Class C2 EMC filter integrated
|
|
| IP degree of protection |
IP66 conforming to EN/IEC 61800-5-1
|
|
| type of cooling |
Fanless
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
380...500 V (- 15...10 %)
|
|
| supply frequency |
50...60 Hz (- 5...5 %)
|
|
| motor power kW |
0.37 kW for heavy duty
|
|
| motor power hp |
0.5 hp for heavy duty
|
|
| line current |
2.1 A at 380 V for heavy duty
1.6 A at 500 V for heavy duty |
|
| prospective line Isc |
5 kA
|
|
| apparent power |
1.4 kVA at 500 V for heavy duty
|
|
| continuous output current |
1.5 A at 4 kHz for heavy duty
|
|
| maximum transient current |
2.3 A during 60 s for heavy duty
|
|
| asynchronous motor control profile |
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
|
| synchronous motor control profile |
Vector control without sensor
|
|
| speed drive output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
4 kHz
|
|
| switching frequency |
4...16 kHz with current derating
2...16 kHz adjustable |
|
| safety function |
STO (safe torque off) SIL 3
SS1 (safe stop 1) SMS (safe maximum speed) SLS (safe limited speed) GDL (guard door locking) |
|
| communication port protocol |
Modbus
CANopen |
|
| optional communication modules |
Communication module: CANopen daisy chain RJ45
Communication module: CANopen SUB-D 9 Communication module: CANopen open style terminal block Communication module: EtherCAT RJ45 Communication module: DeviceNet Communication module: Ethernet/IP Communication module: Profibus DP V1 Communication module: Profinet Communication module: Ethernet Powerlink |
