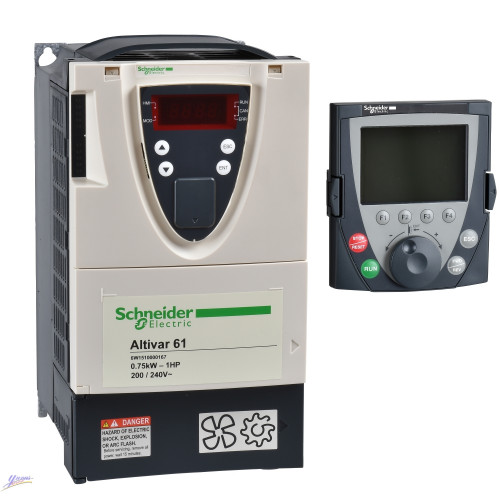

Schneider ATV61H075M3 Variable speed drive ATV61 - 0.75kW 1HP - 200...240V - IP20 - reinforced
| range of product |
Altivar 61
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Pumping and ventilation machine
|
|
| component name |
ATV61
|
|
| motor power kW |
0.37 kW single phase at 200...240 V
0.75 kW 3 phases at 200...240 V |
|
| motor power hp |
1 hp 3 phases at 200...240 V
0.5 hp single phase at 200...240 V |
|
| power supply voltage |
200...240 V (- 15...10 %)
|
|
| supply number of phases |
Single phase
3 phases |
|
| line current |
5.3 A for 240 V 3 phases 0.75 kW / 1 hp
5.8 A for 240 V single phase 0.37 kW / 0.5 hp 6.1 A for 200 V 3 phases 0.75 kW / 1 hp 6.9 A for 200 V single phase 0.37 kW / 0.5 hp |
|
| EMC filter |
Class C2 EMC filter integrated
|
|
| assembly style |
With heat sink
|
|
| apparent power |
1.4 kVA for 240 V single phase 0.37 kW / 0.5 hp
2.2 kVA for 240 V 3 phases 0.75 kW / 1 hp |
|
| maximum prospective line Isc |
5 kA 3 phases
5 kA single phase |
|
| maximum transient current |
3.6 A for 60 s single phase
5.7 A for 60 s 3 phases |
|
| nominal switching frequency |
12 kHz
|
|
| switching frequency |
1...16 kHz adjustable
12...16 kHz with derating factor |
|
| asynchronous motor control |
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points Flux vector control without sensor, standard |
|
| synchronous motor control profile |
Vector control without sensor, standard
|
|
| communication port protocol |
Modbus
CANopen |
|
| type of polarization |
No impedance for Modbus
|
|
| option card |
APOGEE FLN communication card
BACnet communication card CC-Link communication card Controller inside programmable card DeviceNet communication card Ethernet/IP communication card Fipio communication card I/O extension card Interbus-S communication card LonWorks communication card METASYS N2 communication card Modbus Plus communication card Modbus TCP communication card Modbus/Uni-Telway communication card Multi-pump card Profibus DP communication card Profibus DP V1 communication card |
