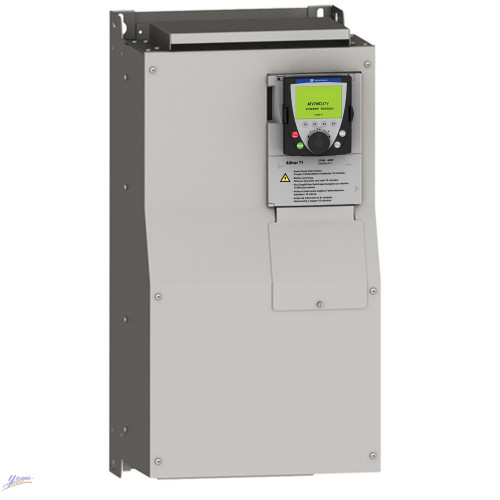

Schneider ATV61HD75N4Z Variable speed drive ATV61 - 75kW 100HP - 380...480V - IP20
| range of product |
Altivar 61
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Pumping and ventilation machine
|
|
| component name |
ATV61
|
|
| motor power kW |
75 kW 3 phases at 380...480 V
|
|
| motor power hp |
100 hp 3 phases at 380...480 V
|
|
| power supply voltage |
380...480 V (- 15...10 %)
|
|
| supply number of phases |
3 phases
|
|
| line current |
137 A for 480 V 3 phases 75 kW / 100 hp
167 A for 380 V 3 phases 75 kW / 100 hp |
|
| EMC filter |
Level 3 EMC filter
|
|
| variant |
Without remote graphic terminal
|
|
| assembly style |
With heat sink
|
|
| apparent power |
109.9 kVA for 380 V 3 phases 75 kW / 100 hp
|
|
| maximum prospective line Isc |
22 kA 3 phases
|
|
| maximum transient current |
192 A for 60 s 3 phases
|
|
| nominal switching frequency |
12 kHz
|
|
| switching frequency |
1...16 kHz adjustable
12...16 kHz with derating factor |
|
| asynchronous motor control |
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points |
|
| synchronous motor control profile |
Vector control without sensor, standard
|
|
| communication port protocol |
Modbus
CANopen |
|
| type of polarization |
No impedance for Modbus
|
|
| option card |
APOGEE FLN communication card
BACnet communication card CC-Link communication card Controller inside programmable card DeviceNet communication card Ethernet/IP communication card Fipio communication card I/O extension card Interbus-S communication card LonWorks communication card METASYS N2 communication card Modbus Plus communication card Modbus TCP communication card Modbus/Uni-Telway communication card Multi-pump card Profibus DP communication card Profibus DP V1 communication card |
