Schneider ATV61QC11N4 Variable speed drive ATV61Q - 110kW / 150HP - 380...480V - IP20
| range of product |
Altivar 61Q
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV61Q
|
|
| product destination |
Asynchronous motors
Synchronous motors |
|
| product specific application |
Pumping and ventilation machine
|
|
| assembly style |
With heat sink
|
|
| EMC filter |
Integrated
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
380...480 V (- 15...10 %)
|
|
| supply voltage limits |
323...528 V
|
|
| supply frequency |
50...60 Hz (- 5...5 %)
|
|
| network frequency limits |
47.5...63 Hz
|
|
| motor power kW |
110 kW 3 phases for 380...480 V
|
|
| motor power hp |
150 hp 3 phases for 380...480 V
|
|
| motor cable length |
<= 100 m shielded cable without motor choke
<= 200 m unshielded cable without motor choke <= 150 m shielded cable with motor choke <= 250 m unshielded cable with motor choke |
|
| line current |
168 A for 480 V 3 phases / 110 kW / 150 hp
202 A for 380 V 3 phases / 110 kW / 150 hp |
ATV61QC16N4
ATV61QC20N4
ATV61QC25N4
ATV61QC31N4
ATV61QC40N4
ATV61QC50N4
ATV61QC63N4
ATV61QC13Y
ATV61QC16Y
ATV61QC20Y
ATV61QC25Y
ATV61QC31Y
ATV61QC40Y
ATV61QC50Y
ATV61QC63Y
ATV61QC80Y

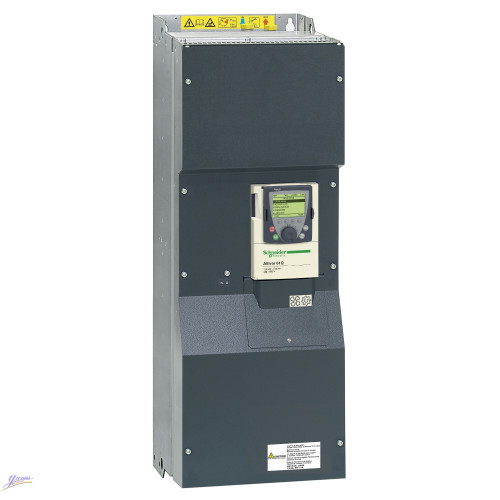

Schneider ATV61QC11N4 Variable speed drive
- Brand: Schneider
- Product Code: ATV61QC11N4
- Availability: 1000
