Schneider ATV61WD55N4A24 Variable speed drive ATV61 - 55kW 75HP - 380...480V - EMC filter - IP54
| range of product |
Altivar 61
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Pumping and ventilation machine
|
|
| component name |
ATV61
|
|
| motor power kW |
55 kW 3 phases at 380...480 V
|
|
| motor power hp |
75 hp 3 phases at 380...480 V
|
|
| power supply voltage |
380...480 V (- 15...10 %)
|
|
| supply number of phases |
3 phases
|
|
| line current |
87 A for 480 V 3 phases 55 kW / 75 hp
104.8 A for 380 V 3 phases 55 kW / 75 hp |
|
| EMC filter |
Class C2 EMC filter integrated
|
|
| variant |
With additional power supply 24 V DC
|
|
| assembly style |
Enclosed
|
|
| apparent power |
69 kVA for 380 V 3 phases 55 kW / 75 hp
|
|
| maximum prospective line Isc |
35 kA 3 phases
|
|
| maximum transient current |
113.3 A for 60 s 3 phases
|
|
| nominal switching frequency |
4 kHz
|
|
| switching frequency |
2...16 kHz adjustable
8...16 kHz with derating factor |
|
| asynchronous motor control |
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f |
|
| synchronous motor control profile |
Vector control without sensor, standard
|
|
| communication port protocol |
CANopen
Modbus |
|
| type of polarization |
No impedance for Modbus
|
|
| option card |
APOGEE FLN communication card
BACnet communication card CC-Link communication card Controller inside programmable card DeviceNet communication card Ethernet/IP communication card Fipio communication card I/O extension card Interbus-S communication card LonWorks communication card METASYS N2 communication card Modbus Plus communication card Modbus TCP communication card Modbus/Uni-Telway communication card Multi-pump card Profibus DP communication card Profibus DP V1 communication card |
ATV61WD55N4U
ATV61WD75N4
ATV61WD75N4A24
ATV61WD75N4C
ATV61WD75N4U
ATV61WD90N4
ATV61WD90N4A24
ATV61WD90N4C
ATV61WD90N4U
ATV61WU15N4
ATV61WU15N4A24
ATV61WU15N4C
ATV61WU15N4U
ATV61WU22N4
ATV61WU22N4A24
ATV61WU22N4C
ATV61WU22N4U
ATV61WU30N4
ATV61WU30N4A24
ATV61WU30N4C
ATV61WU30N4U
ATV61WU40N4
ATV61WU40N4A24
ATV61WU40N4C
ATV61WU40N4U
ATV61WU55N4
ATV61WU55N4A24
ATV61WU55N4C
ATV61WU55N4U
ATV61WU75N4
ATV61WU75N4A24
ATV61WU75N4C
ATV61WU75N4U
ATV61W075N4CZH28
ATV61WD22N4CZH28
ATV61WD30N4CZH28
ATV61WD30N4ZH28
ATV61WD37N4CZH28
ATV61WD45N4CZH28
ATV61WU15N4CZH28
ATV61WU22N4CZH28
ATV61WU30N4CZH28
ATV61WU40N4CZH28
ATV61WU40N4ZH28
ATV61WU75N4CZH28

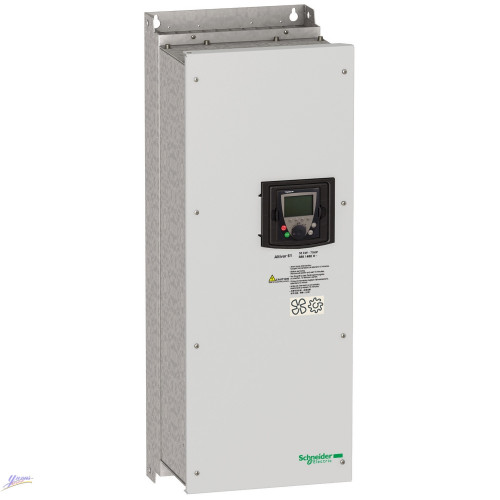

Schneider ATV61WD55N4A24 Variable speed drive
- Brand: Schneider
- Product Code: ATV61WD55N4A24
- Availability: 1000
