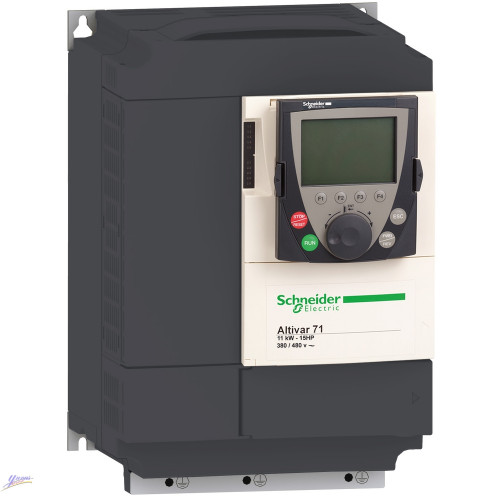

Schneider ATV71HD11M3X383 Variable speed drive ATV71 - 11kW-15HP - 240V - w/o EMC filter-graphic terminal
| range of product |
Altivar 71
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Complex, high-power machines
|
|
| component name |
ATV71
|
|
| motor power kW |
11 kW at 200...240 V 3 phases
|
|
| motor power hp |
15 hp at 200...240 V 3 phases
|
|
| motor cable length |
<= 50 m Shielded cable
<= 100 m Unshielded cable |
|
| power supply voltage |
200...240 V (- 15...10 %)
|
|
| network number of phases |
3 phases
|
|
| line current |
45.8 A for 240 V 3 phases 11 kW / 15 hp
53.3 A for 200 V 3 phases 11 kW / 15 hp |
|
| EMC filter |
Without EMC filter
|
|
| assembly style |
With heat sink
|
|
| variant |
Control synchronous motors with speed feedback
|
|
| apparent power |
19 kVA at 240 V 3 phases 11 kW / 15 hp
|
|
| prospective line Isc |
<= 22 kA, 3 phases
|
|
| nominal output current |
54 A at 4 kHz 230 V 3 phases 11 kW / 15 hp
|
|
| maximum transient current |
81 A for 60 s 3 phases 11 kW / 15 hp
89.1 A for 2 s 3 phases 11 kW / 15 hp |
|
| output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
4 kHz
|
|
| switching frequency |
1...16 kHz adjustable
4...16 kHz with derating factor |
|
| asynchronous motor control profile |
Voltage/frequency ratio (2 or 5 points)
ENA (Energy adaptation) system for unbalanced loads Flux vector control (FVC) with sensor (current vector) Sensorless flux vector control (SFVC) (voltage or current vector) |
|
| type of polarization |
No impedance for Modbus
|
ATV71HD11N4
ATV71HD11N4383
ATV71HD11N4S337
ATV71HD11N4Z
ATV71HD11Y
ATV71HD15M3X
ATV71HD15M3X337
ATV71HD15M3X383
ATV71HD15M3XZ
ATV71HD15N4
ATV71HD15N4383
ATV71HD15N4S337
ATV71HD15N4Z
ATV71HD15Y
ATV71HD18M3X
ATV71HD18M3X337
ATV71HD18M3X383
ATV71HD18N4
ATV71HD18N4383
ATV71HD18N4S337
ATV71HD18N4Z
ATV71HD18Y
ATV71HD22M3X
ATV71HD22M3X337
ATV71HD22M3X383
ATV71HD22N4
ATV71HD22N4383
ATV71HD22N4S337
ATV71HD22N4Z
ATV71HD22Y
ATV71HD30M3X
ATV71HD30M3X337
ATV71HD30M3X383
ATV71HD30N4
ATV71HD30N4383
ATV71HD30N4S337
ATV71HD30N4Z
ATV71HD30Y
ATV71HD37M3X
ATV71HD37M3X337
ATV71HD37M3X383
ATV71HD37N4
ATV71HD37N4383
ATV71HD37N4S337
ATV71HD37N4Z
ATV71HD37Y
ATV71HD45M3X
ATV71HD45M3X337
ATV71HD45M3X383
ATV71HD45N4
ATV71HD45N4383
ATV71HD45N4S337
ATV71HD45N4Z
ATV71HD45Y
ATV71HD55M3X
ATV71HD55M3X383
ATV71HD55M3XD
ATV71HD55N4
ATV71HD55N4383
ATV71HD55N4S337
ATV71HD55N4Z
ATV71HD55Y
ATV71HD75M3X
ATV71HD75M3X383
ATV71HD75M3XD
ATV71HD75N4
ATV71HD75N4383
ATV71HD75N4S337
Schneider ATV71HD11M3X383 Variable speed drive
- Brand: Schneider
- Product Code: ATV71HD11M3X383
- Availability: 1000
Tags: ATV71HD11M3X383
