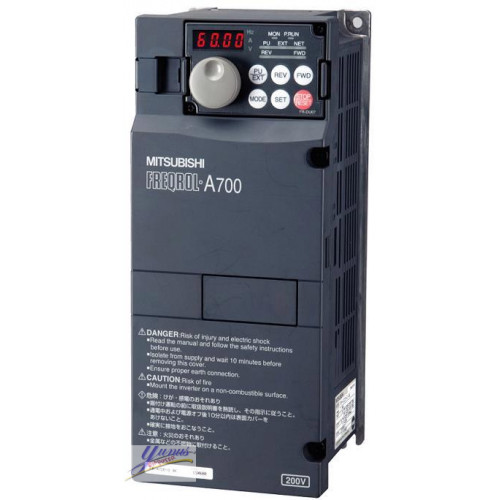

Mitsubishi FR-A740-160K inverter
INVERTER
| Type | FR-A700 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Maximum Rated Voltage (V) | 480 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 325 |
| Rated Motor Capacity ND (kW) | 160 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | NO |
| Integrated EMC Filter | BUILT-IN |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Protection Class | IP00 |
ADDITIONAL PRODUCT INFORMATION
| Difference to Standard 1 | JAPANESE VERSION |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 498 |
| Height (mm) | 1010 |
| Depth (mm) | 380 |
| Weight (kg) | 110 |
ORDER CODES
| European Order Code | 169787 |
| Global Order Code | 1ALB20 |
CLASSIFICATION DATA
| Product hierarchy | IAK228 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 164 KG |
| Volume | 738.558 CDM |
| Length | 145 CM |
| Width | 83,5 CM |
| Height | 61 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85044090 |
| Country of Origin | JP |
LIFE CYCLE
| Discontinued (EOL) | 30.09.2014 |
| Last Time Buy (LTB) | 30.11.2015 |
| End of Service (EOS) | 31.12.2022 |
| Successor | 266760 |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
