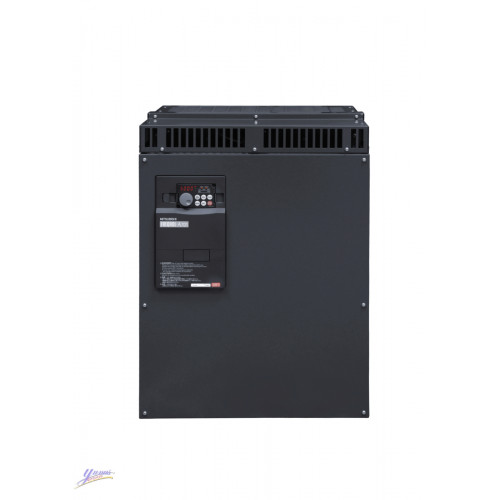

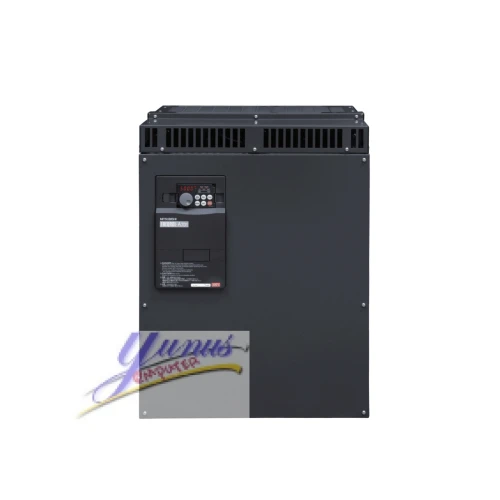

• Mitsubishi FR-A741-45K Inverter - Industrial Variable Frequency Drive (45kW)

Mitsubishi FR-A741-45K Inverter - High-Performance Industrial Variable Frequency Drive

Introduction: The Mitsubishi FR-A741-45K Inverter stands as a pinnacle in industrial variable frequency drives, showcasing unparalleled performance, reliability, and cutting-edge technology. This innovative equipment is engineered to provide precise control over motor speed, ensuring optimal efficiency and functionality across various industrial applications.

Key Features:

  1. Powerful Performance: The FR-A741-45K delivers exceptional power, boasting a 45kW capacity, making it an ideal choice for high-demand industrial environments.

  2. Precision Control: With advanced control algorithms and high-resolution output, this inverter offers precise speed and torque control, ensuring seamless operation in critical applications.

  3. Enhanced Efficiency: Its intelligent energy-saving features optimize power consumption, reducing operational costs while maintaining superior performance.

  4. Robust Design: Built to withstand harsh industrial conditions, this inverter boasts a robust design and superior components, ensuring durability and longevity.

  5. User-Friendly Interface: The intuitive interface and comprehensive display make setup and operation straightforward, reducing installation time and maintenance efforts.

  6. Safety & Reliability: Equipped with comprehensive safety features and fault detection mechanisms, ensuring a secure operating environment and minimizing downtime.

Applications:

  1. Industrial Machinery: Perfectly suited for various industrial machinery applications, including pumps, fans, conveyors, and more.

  2. Manufacturing Processes: Optimize manufacturing processes with precise speed control, improving efficiency in production lines.

  3. HVAC Systems: Efficiently control motors in heating, ventilation, and air conditioning systems for optimal performance.

  4. Renewable Energy: Ideal for use in renewable energy systems, enabling efficient power conversion and control.

Technical Specifications:

  • Model: Mitsubishi FR-A741-45K Inverter
  • Input Voltage: [Specify voltage range]
  • Output Voltage: [Specify voltage range]
  • Power Output: 45kW
  • Frequency Range: [Specify frequency range]
  • Control Method: V/f control, Sensorless Vector Control
  • Communication Interfaces: [Specify available interfaces]
  • Dimensions: [Provide dimensions]
  • Weight: [Specify weight]

Conclusion:

The Mitsubishi FR-A741-45K Inverter sets a new standard in the realm of industrial variable frequency drives, combining robustness, precision, and efficiency in a single device. Its cutting-edge features, coupled with Mitsubishi's renowned reliability, make it the ultimate choice for industries seeking optimal performance and operational excellence.

  INVERTER
Type FR-A700 ADVANCED INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC
Phases 3
Rated Output Current ND (A) 86
Rated Motor Capacity ND (kW) 45
Control Method VECTOR CONTROL
Motor Type INDUCTION MOTOR
Brake Chopper ED (%) 30
Integrated EMC Filter YES
Safe Torque Off (STO) NO
Regenerative (4Q) YES
Integrated DC Choke NO
Display FR-DU07
Display Type 4 DIGITS LED
PLC Function YES
Program Memory 1K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
Type of Terminal Block SCREW
Expandable YES
RS-485 2
USB 1
Built-In Network MODBUS-RTU
Protection Class IP00
Power Loss (W) 2360
Leakage Current (mA) 1
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 470
Height (mm) 700
Depth (mm) 368
Weight (kg) 83
ORDER CODES
European Order Code 216912
Global Order Code 1AWB08M00
CLASSIFICATION DATA
Product hierarchy IAK22602
Class Description FA-Inverter: Inverter
External Material Group Standard Material
AVAILABILITY
Logistic Class A
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 92.5  KG
Volume 235.521  CDM
Length 61 CM
Width 78 CM
Height 49,5 CM
COMMODITY / IMPORT CODE
Commodity Code 85044090
Country of Origin JP
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO

Mitsubishi FR-A741-45K Inverter - Industrial Variable Frequency Drive (45kW)

  • Brand: Mitsubishi
  • Product Code: FR-A741-45K
  • Availability: 1000

Tags: Mitsubishi, FR-A741-45K, Inverter, Industrial, VFD, Variable Frequency Drive, 45kW, Motor Control, Energy Efficiency, Precision Control
