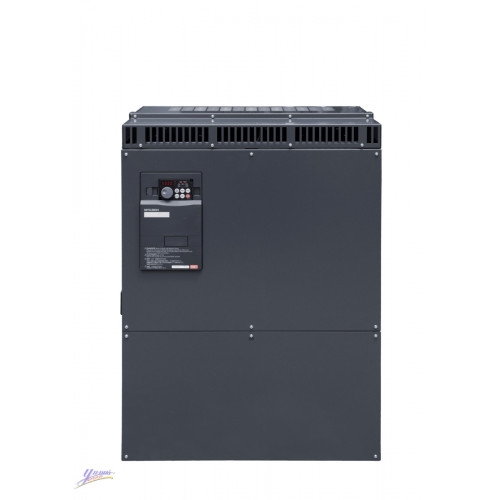

Mitsubishi FR-A741-55K Inverter; Rated Power: 55kW; 3x380-480V; Rated Current: 110A; IP00
INVERTER
| Type | FR-A700 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 110 |
| Rated Motor Capacity ND (kW) | 55 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | YES |
| Integrated DC Choke | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| Type of Terminal Block | SCREW |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Protection Class | IP00 |
| Power Loss (W) | 2700 |
| Leakage Current (mA) | 1 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 600 |
| Height (mm) | 900 |
| Depth (mm) | 405 |
| Weight (kg) | 115 |
ORDER CODES
| European Order Code | 216913 |
| Global Order Code | 1AWB09M00 |
CLASSIFICATION DATA
| Product hierarchy | IAK22602 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | A |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 129 KG |
| Volume | 382.2 CDM |
| Length | 98 CM |
| Width | 75 CM |
| Height | 52 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85044090 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
