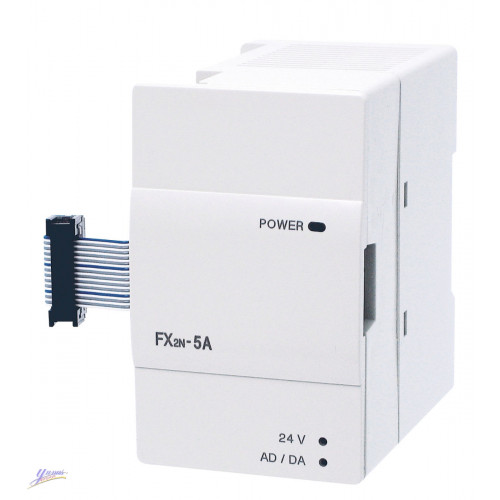

Mitsubishi FX2N-5A PLC, FX2N Analog modul; 4 analog inputs, 16 bits; 1 analog output, 12 bits
ANALOGUE I/O MODULE
| Type | FX2N |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 8 |
| Integrated Analogue Inputs | 4 |
| Integrated Analogue Outputs | 1 |
| Input Voltage Range (V) | -10-10; -0,1-0,1 |
| Input Current Range (mA) | -20-20; 4-20 |
| Output Voltage Range (V) | -10-10 |
| Output Current Range (mA) | 0-20; 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 55 |
| Height (mm) | 90 |
| Depth (mm) | 87 |
| Weight (kg) | 0,3 |
ORDER CODES
| European Order Code | 153740 |
| Global Order Code | 09M192 |
CLASSIFICATION DATA
| Product hierarchy | IAD203 |
| Class Description | FA-COM PLC: Analogue I/O Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | B |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.45 KG |
| Volume | 1.848 CDM |
| Length | 14 CM |
| Width | 11 CM |
| Height | 12 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FX2N-5A PLC, FX2N Analog modul
- Brand: Mitsubishi
- Product Code: FX2N-5A
- Availability: 1000
Tags: FX2N-5A
