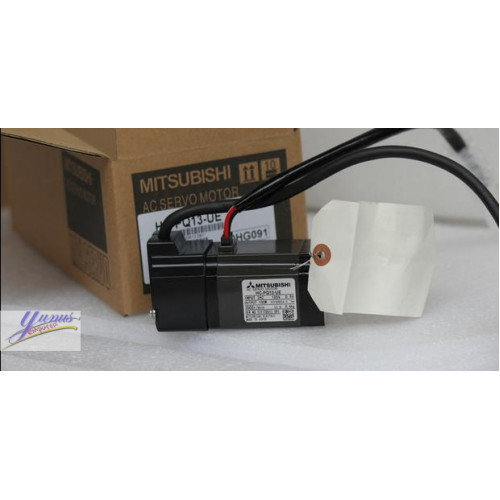

Mitsubishi HC-PQ13-UE Servo Motor
SERVO MOTOR
| Type | HC-PQ |
| Rated Torque (Nm) | 0,32 |
| Maximum Torque (Nm) | 1,28 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4500 |
| Inertia (kg*cm2) | 0,03 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP00 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4096 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 40 |
| Height (mm) | 40 |
| Depth (mm) | 97 |
| Weight (kg) | 0,6 |
ORDER CODES
| European Order Code | 70406 |
| Global Order Code | 0H3102070 |
CLASSIFICATION DATA
| Product hierarchy | IAK30202 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.7 KG |
| Volume | 2.484 CDM |
| Length | 24 CM |
| Width | 11,5 CM |
| Height | 9 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015100 |
| Country of Origin | JP |
LIFE CYCLE
| Last Time Buy (LTB) | 31.12.2012 |
| End of Service (EOS) | 31.03.2020 |
| Successor | 210940 HF-KE13W1-S* 100W 3000RPM |
| Successor Information | SYSTEM CHANGE REQUIRED |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
