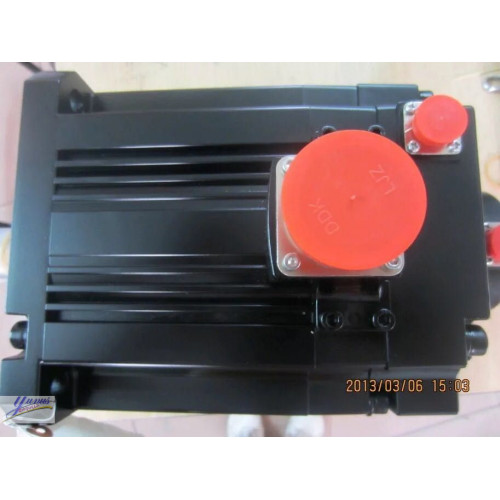

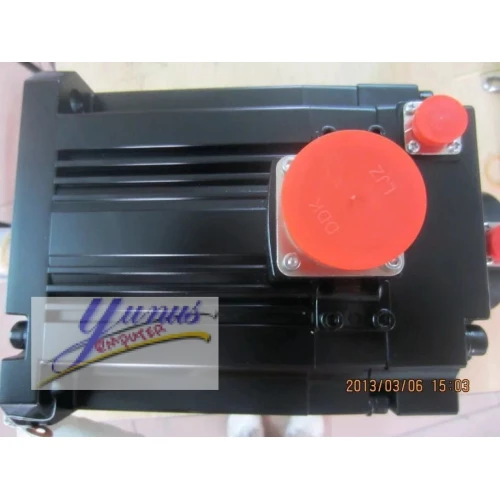

Mitsubishi HF-SP502B/HF-SP502BK Servo Motor
SERVO MOTOR
| Type | HF-SP |
| Rated Capacity (kW) | 5 |
| Rated Torque (Nm) | 23,9 |
| Maximum Torque (Nm) | 71,6 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 107 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Encoder Resolution (p/rev) | 262144 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 176 |
| Height (mm) | 176 |
| Depth (mm) | 253 |
| Weight (kg) | 29 |
ORDER CODES
| European Order Code | 161537 |
| Global Order Code | 0HR256 |
CLASSIFICATION DATA
| Product hierarchy | IAK30213 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 28 KG |
| Volume | 29.197 CDM |
| Length | 48,5 CM |
| Width | 28 CM |
| Height | 21,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015220 |
| Country of Origin | JP |
LIFE CYCLE
| Discontinued (EOL) | 29.06.2017 |
| Last Time Buy (LTB) | 31.01.2019 |
| End of Service (EOS) | 31.05.2026 |
| Successor | 248683 HG-SR502B |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HF-SP502B/HF-SP502BK Servo Motor
- Brand: Mitsubishi
- Product Code: HF-SP502BK
- Availability: 1000
