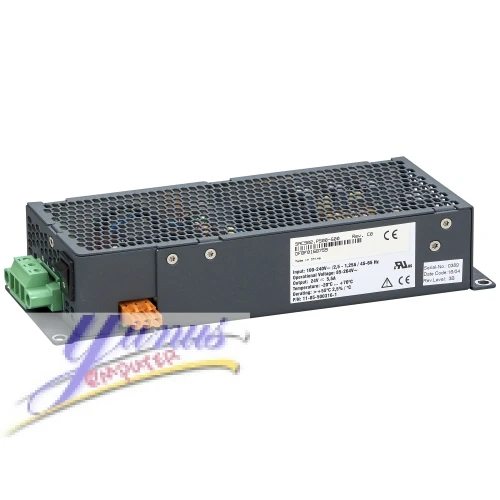

Schneider HMIYPMAC61 Module AC power supply for Panl PC 12"
| range of product |
Magelis iPC
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| accessory / separate part category |
Spare part
|
| product weight |
0.6 kg
|
|
|---|---|---|
| accessory / separate part destination |
Magelis Panel PC 12" for 1 port
|
|
| input voltage |
100...240 V AC at 45...65 Hz
|
|
| input current |
20 mA at 100 V AC
|
|
| output voltage |
24 V DC +/- 10 %
|
|
| [In] rated current |
5.5 A
|
|
| range compatibility |
Magelis iPC
|
| ambient air temperature for operation |
0...55 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
5...90 % non-condensing
|
|
| IP degree of protection |
IP20 conforming to EN 60529
|
|
| vibration resistance |
0.5 gn 9...150 Hz
1 gn 9...150 Hz 2 gn 8...200 Hz 4 gn 200...500 Hz 1.75 mm 2...9 Hz 3.5 mm 2...9 Hz 7.5 mm 2...9 Hz |
|
| shock resistance |
15 gn operation 11 ms
30 gn transport 6 ms 30 gn storage 6 ms |
Schneider HMIYPMAC61 Module AC power supply for Panl PC 12"
- Brand: Schneider
- Product Code: HMIYPMAC61
- Availability: 1000
Tags: HMIYPMAC61
