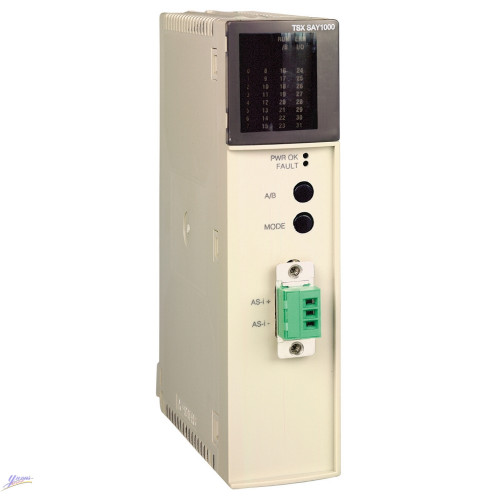

Schneider TSXSAY1000 AS-Interface master module - V2 - standard and extended
| range of product |
Modicon Premium Automation platform
|
|
|---|---|---|
| product or component type |
AS-Interface master module
|
| range compatibility |
AS-Interface cabling system
|
|
|---|---|---|
| actuator sensor interface profile [AS-i] |
M2E
|
|
| AS-i version |
V2
|
|
| addressing |
Standard and extended
|
|
| number of slave |
31, extended addressing
31, standard addressing |
|
| type of connectable interfaces |
Analog I/Os, standard addressing
Discrete I/Os (4I/3O), extended addressing Discrete I/Os (4I/4O), standard addressing Safety interfaces, standard addressing |
|
| electrical connection |
1 male connector SUB-D 3 ways
|
|
| supply |
Via power supply integrated into the host platform of the module
|
|
| current consumption |
450 mA at 5 V DC
|
|
| local signalling |
Display unit
|
|
| number of modules per base controller |
1 for TSX570.
1 for TSX57C. 2 for TSX571. 4 for TSX572. 8 for TSX573. 8 for TSX574. 8 for TSX575. 8 for TSX576. |
|
| product weight |
0.34 kg
|
| standards |
IEC 60068-2-27, Ea tests
IEC 60068-2-6, Fc tests |
|
|---|---|---|
| ambient air temperature for operation |
0...60 °C
|
|
| ambient air temperature for storage |
-25...70 °C
|
|
| IP degree of protection |
IP20
|
Schneider TSXSAY1000 AS-Interface master module - V2 - standard and extended
- Brand: Schneider
- Product Code: TSXSAY1000
- Availability: 1000
