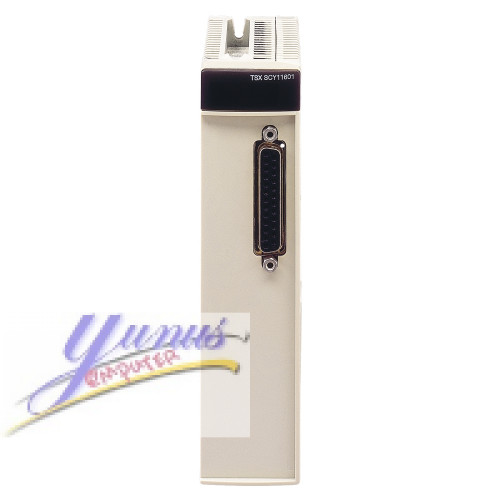

Schneider TSXSCY21601C Communication Module - Enhanced Connectivity for Optimal Performance
The Schneider TSXSCY21601C Communication Module stands as a pinnacle of innovation, delivering unparalleled connectivity and reliability for industrial automation systems. Engineered to precision, this module is designed specifically to facilitate seamless communication among devices, ensuring streamlined operations and enhanced productivity in complex industrial environments.
Key Features:
Twisted Shielded Pairs Cable: Equipped with a high-quality 2 twisted shielded pairs cable, this module guarantees superior signal integrity and minimizes interference, thereby ensuring consistent and secure data transmission.
Extended Compatibility: With the capability to support up to 28 devices, this communication module fosters an extensive network integration, allowing for the connection of multiple devices without compromising on performance.
Robust Performance: Built with cutting-edge technology and rigorous quality standards, the TSXSCY21601C ensures reliable and efficient data exchange, enabling optimal performance even in demanding industrial settings.
Seamless Integration: Designed for hassle-free installation and integration into existing systems, this module offers a user-friendly interface, simplifying configuration and setup processes.
Enhanced Security: Incorporating advanced security protocols, the module prioritizes data integrity and confidentiality, safeguarding critical information from potential threats.
Technical Specifications:
- Model: TSXSCY21601C
- Cable Type: 2 Twisted Shielded Pairs
- Device Support: Up to 28 devices
- Compatibility: Compatible with a wide range of industrial automation systems
Applications:
Ideal for industrial applications such as manufacturing, process control, and automation, the Schneider TSXSCY21601C Communication Module is tailored to meet the demands of modern industrial operations, ensuring seamless connectivity and optimal performance.
- Schneider TSXSCY21601C Communication Module
- Twisted Shielded Pairs Cable
- Industrial Automation Connectivity
- Device Networking Solutions
- Industrial Communication Solutions
Elevate your industrial connectivity with the Schneider TSXSCY21601C Communication Module, offering unparalleled reliability, compatibility, and performance for your automation systems.
| range of product |
Modicon Premium Automation platform
|
|
|---|---|---|
| product or component type |
Communication module
|
|
| software designation |
Unity Pro
|
|
| structure type |
Heterogeneous industrial bus
|
| product compatibility |
Atrium
Premium |
|
|---|---|---|
| method of access |
Master/slave type
|
|
| integrated connection type |
1 serial link 1 SUB-D 25
1 slot for PCMCIA type III card |
|
| communication port protocol |
Multiprotocol
|
|
| communication port support |
RS485 isolated
|
|
| mode of transmission |
Asynchronous in baseband
|
|
| transmission frame |
RTU/ASCII
|
|
| transmission rate |
1.2...19.2 kbit/s
|
|
| transmission support medium |
2 twisted shielded pairs cable
|
|
| number of devices |
28
|
|
| number of addresses |
0...97
|
|
| bus length |
0...1300 m Modbus
|
|
| tap links length |
15 m
|
|
| requests |
120 words per request
1920 bits per request |
|
| control parameter |
One CRC 16 on each frame
|
|
| monitoring function |
Diagnostic counters
Event counters |
|
| modbus funtions available |
Event connection Modbus master 0C
Event connection Modbus slave 0C Event counter Modbus master 0B Event counter Modbus slave 0B Identification Modbus slave 11 Slave identification Modbus master 11 Write n output bits Modbus slave 0F Write n output words Modbus slave 10 Diagnostic Modbus master 08 Diagnostic Modbus slave 08 Exceptional read status Modbus master 07 Exceptional read status Modbus slave 07 Read input words Modbus master 04 Read n input words Modbus slave 04 Write 1 bits or n bits Modbus master 05 Write 1 input word Modbus slave 06 Write 1 output bit Modbus slave 05 Write 1 word or n word Modbus master 06 |
|
| local signalling |
1 LED communication (CH0)
1 LED internal fault, module failure (ERR) 1 LED module operating (RUN) |
|
| current consumption |
350 mA 5 V DC
|
|
| module format |
Standard
|
|
| product weight |
0.36 kg
|
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
5...95 % without condensation
|
|
| operating altitude |
<= 2000 m
|
Schneider TSXSCY21601C Communication Module - 2 Twisted Shielded Pairs Cable - Supports 28 Devices
- Brand: Schneider
- Product Code: TSXSCY21601C
- Availability: 1000
Tags: Schneider TSXSCY21601C, Communication Module, Twisted Shielded Pairs Cable, 28 Devices, Industrial Connectivity
