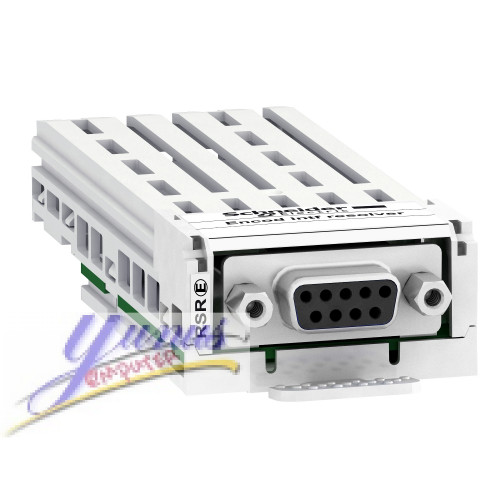

Schneider VW3A3423 Resolver interface module
| range of product |
Altivar
|
|
|---|---|---|
| product or component type |
Encoder interface module
|
|
| range compatibility |
Altivar Process ATV900
Altivar Machine ATV340 Altivar Process Modular |
|
| encoder type |
Resolver
|
| supply current |
<= 0.05 A
|
|
|---|---|---|
| protection type |
Short-circuit protection
Overload protection |
|
| cable distance between devices |
<= 100 m
|
|
| maximum operating frequency |
12 kHz
|
|
| input signal |
Sin+, Sin-, Cos+, Cos-, Temp+, Temp-
|
|
| output signal |
Ref+, Ref-
|
|
| ratio |
3/10, 1/2, 3/4, 1
|
|
| connector type |
1 female SUB-D 9
|
|
| product weight |
0.15 kg
|
Schneider VW3A3423 Resolver interface module
- Brand: Schneider
- Product Code: VW3A3423
- Availability: 1000
Tags: VW3A3423
