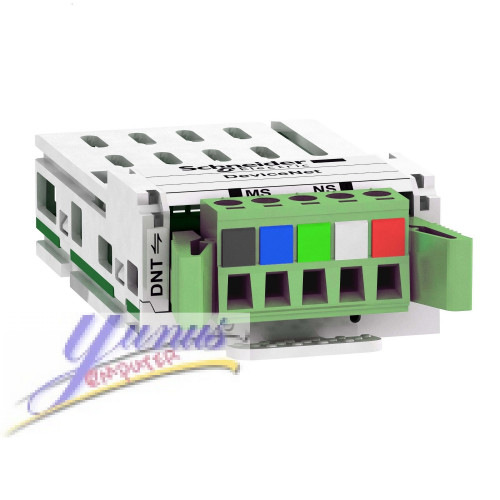

Schneider VW3A3609 Devicenet communication module
| range of product |
Altivar
|
|
|---|---|---|
| product or component type |
Communication module
|
| range compatibility |
Altivar Process Modular
Altivar Machine ATV340 except Sercos drives Altivar Machine ATV320 Altivar Process ATV900 Altivar 32 Altivar Process ATV600 |
|
|---|---|---|
| communication port protocol |
DeviceNet
|
|
| electrical connection |
1 connector 1 removable 5-way screw connector
|
|
| transmission rate |
125 kbps, 250 kbps and 500 kbps configurable
|
|
| cable distance between devices |
<= 100 m for 500 kbps
<= 500 m for 125 kbps |
|
| addressing |
1...63 configurable by graphic terminal/SoMove software
|
|
| communication service |
Inputs : polled, change of state, cyclic
Outputs : polled ODVA AC drive and CiA 402 profile Auto device replacement Communication monitoring time out adjustable by DeviceNet configurator |
|
| display type |
1 LED MS (Module Status)
1 LED NS (Network Status) |
|
| diagnostic function |
Received instruction by graphic terminal
Control mode received by graphic terminal |
|
| bus profile |
CIP AC Drive
CiA 402 |
