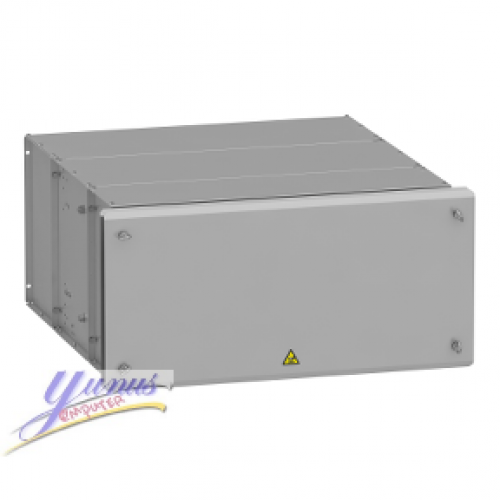

Schneider VW3A7755 Braking Resistor - 8 Ohms - 25 kW - IP23
Enhance the efficiency and safety of your industrial operations with the Schneider VW3A7755 Braking Resistor. Designed to deliver optimal performance and reliability, this braking resistor is engineered to withstand rigorous applications, providing a seamless solution for managing energy dissipation within your systems.
Key Features:
- Resistance: 8 Ohms
- Power Rating: 25 kW
- Enclosure Rating: IP23
Unmatched Performance:
This braking resistor is meticulously crafted to handle high power dissipation, boasting an 8-ohm resistance and a remarkable power rating of 25 kW. Its robust design ensures efficient energy absorption and dissipation, effectively managing excess energy generated during braking cycles within motor drives and systems.
Superior Durability:
Crafted from high-quality materials, the Schneider VW3A7755 Braking Resistor is built to endure challenging industrial environments. Its IP23 enclosure rating ensures protection against dust and water ingress, safeguarding the internal components and ensuring consistent performance even in demanding conditions.
Applications:
- Industrial Automation: Ideal for use in industrial machinery, conveyor systems, elevators, and more.
- Motor Drives: Compatible with various motor drives, enhancing their braking capabilities and overall efficiency.
- Energy Management: Facilitates efficient energy dissipation, contributing to energy management initiatives and reducing overall operational costs.
Installation and Compatibility:
Designed for easy integration, this braking resistor is compatible with a wide range of systems and can be seamlessly incorporated into existing setups. Its user-friendly design simplifies installation, minimizing downtime and maximizing productivity.
Why Choose Schneider VW3A7755 Braking Resistor?
- Reliability: Trusted Schneider quality ensures consistent performance and longevity.
- Precision Engineering: Meticulously crafted for optimal functionality and efficiency.
- Safety: Compliant with industry standards, ensuring safe and reliable operation.
SEO Optimization:
To improve search engine visibility and accessibility, the product description includes relevant keywords such as "Schneider VW3A7755," "Braking Resistor," "8 Ohms," "25 kW," and "IP23," enabling easier discovery for potential customers seeking this specific product.
Elevate the performance and reliability of your industrial systems with the Schneider VW3A7755 Braking Resistor, a pinnacle of efficiency, durability, and precision engineering.
x
| product or component type |
Braking resistor
|
|---|
| range compatibility |
Altivar Process ATV900
Altivar Machine ATV340 |
|
|---|---|---|
| product compatibility |
Variable speed drive ATV930 wall mount 55 kW 380...480 V severe
cycle
Variable speed drive ATV930 wall mount 15 kW 200...240 V severe cycle Variable speed drive ATV950 wall mount 55 kW 380...480 V severe cycle Variable speed drive ATV340 45 kW 380...480 V severe cycle Variable speed drive ATV930 75 kW 500...690 V severe cycle Variable speed drive ATV930 90 kW 500...690 V severe cycle Variable speed drive ATV930 100 hp 600 V severe cycle |
|
| braking cycle |
Severe cycle (heavy duty) : <= 54 s braking with 100 % braking
torque for a 120 s cycle
Severe cycle (heavy duty) : <= 6 s braking with 165 % braking torque for a 120 s cycle |
|
| average power available |
25 kW at 50 °C
|
|
| ohmic value |
8 Ohm
|
|
| electrical connection |
Terminal, clamping capacity: <= 2.5 mm², AWG 12 for temperature
control switch
M12 bar wire for drive |
|
| protection type |
Thermal protection via drive or temperature control switch at
120 °C
|
|
| [Ue] rated operational voltage |
24 V DC
250 V AC |
|
| width |
540 mm
|
|
| height |
1035 mm
|
|
| depth |
1060 mm
|
|
| product weight |
87.5 kg
|
| ambient air temperature for operation |
0...50 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25...70 °C
|
|
| IP degree of protection |
IP23
|
Schneider VW3A7755 Braking resistor - 8 ohms - 25 kW - IP23
- Brand: Schneider
- Product Code: VW3A7755
- Availability: 1000
Tags: Schneider VW3A7755, Braking Resistor, 8 Ohms, 25 kW, IP23, Industrial, Efficiency, Energy Dissipation, Machinery, Motor Drives
