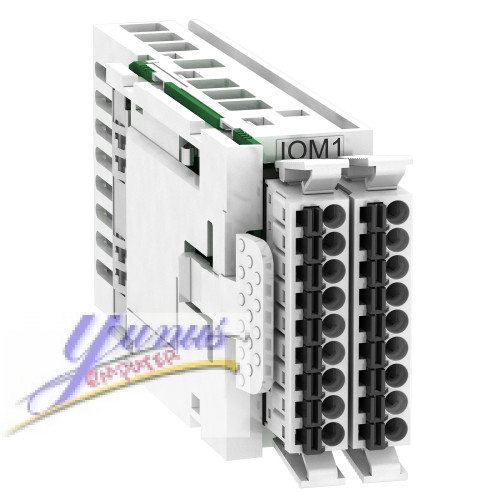

Schneider VW3M3302 Additional analog and digital inputs and outputs with spring terminals

Main
range compatibility	Lexium 32
accessory / separate part category	Communication accessories
accessory / separate part type	Module
product or component type	Additionnal I/O module
product compatibility	Lexium 32M
accessory / separate part destination	Servo drive

Complementary
input/output type	2 analog inputs : - 10...10 V, , 20 kOhm, resolution: 14 bits for 0.25 ms 4 discrete inputs : - 3...5 V/15...30 V, 2.5 mA, for 0.25 ms 2 discrete outputs : <= 30 V, <= 100 mA, for 0.25 ms 2 analog outputs : - 10...10 V, 0...20 mA, , 470 Ohm, resolution: 12 bits for 0.25 ms
protection type	Reverse polarity protection on input
reverse polarity protection	Yes on input
short-circuit protection	Yes on output
electrical connection	Spring terminal
product weight	0.45 kg
